2021-07-27 环球过滤分离技术网 nanopuretech6
超滤陶瓷滤芯特点、技术参数及实际应用简介：
[attach]5176[/attach]
Characteristics,technical parameters and practical application of ultrafiltration ceramicfilter element:
1、过滤精度高，净化后的水质健康：超滤陶瓷滤芯是目前全球唯一一款综合平均孔径达到0.01μm（已知最小病毒直径为0.02μm）的陶瓷滤芯，可去除水中包括细菌病毒等有害物质的同时保留水中原有有益的矿物质，极大程度地还原了天然山泉水的特征。 1. High filter fineness and healthy waterquality after purification: Ultrafiltration ceramic filter element isthe only ceramic filter element in the world with a comprehensive average porediameter of 0.01μm (the minimum virus diameter known so far is 0.02μm),which can remove harmful substances including bacteria and viruses, whileretaining the original beneficial minerals in water, thus greatly restoring thecharacteristics of natural mountain spring water.
2、材质长效环保：超滤陶瓷滤芯是以优质天然矿物为原材料，经过高温煅烧而成，材质性能稳定，有耐酸碱、耐氧化、耐余氯、耐高温、不易堵塞等特点，无老化问题，可长期使用。
2.Long-term environmental friendlymaterials: Ultrafiltration ceramic filter element is made of high-qualitynatural minerals and calcined at high temperature. The material has thecharacteristics of stable performance, acid and alkali resistance, oxidationresistance, residual chlorine resistance, high temperature resistance, not easyto be blocked, etc. It has no aging problem and can be used for a long time.
3、使用性能：大流量、寿命长、再生能力强、不易堵塞、易清洗。（以直径5cm×高25cm规格的滤芯为例），适用水压为市政自来水，水压0.2~0.3MPa，初始流量为2.5~4.0L/min。因为水中颗粒性杂质均无法进入滤芯内部，只是附着在滤芯表面，导致滤芯衰变的因素主要是胶状物形成的凝胶层，所以清洗时只需先用水洗净滤芯表面颗粒性杂质，再用500目细砂纸轻微打磨滤芯表层，彻底去除凝胶层，然后冲洗干净即可完全恢复滤芯初始性能。随着清洗次数的增加，壁厚变薄，阻力减小，滤芯的流量还会出现反超初始的现象。每次清洗打磨后的初始流量、流量衰减速度、净水总量均不会出现像硅藻泥滤芯那样逐步递减的现象。一支滤芯可承受数百次的打磨再生，滤芯在破损之前性能始终不会出现衰退，净水总量可达百吨以上。按普通家庭每天20升的用水量计算，可以使用10年以上。（水质不同有所差异）
3. Excellent serviceperformance: large flow rate, long service life, strongregeneration ability, not easy to be blocked and easy to clean. (Taking thefilter element with a diameter of 5cm× height of 25cm as an example), theapplicable water pressure is municipal water, the water pressure is 0.2~0.3MPa,and the initial flow rate is 2.5~4.0L/min. Because all the particulateimpurities in water can't enter the filter element, but only adhere to thesurface of the filter element, and the main factor causing the filter elementto decay is the gel layer formed by colloidal substance. Therefore, it is onlynecessary to wash the particulate impurities on the filter element surface withwater, then slightly polish the filter element surface with 500-mesh finesandpaper, remove the gel layer thoroughly, and then rinse it to completelyrestore the initial performance of the filter element . With theincrease of cleaning times, the wall thickness decreases, the resistancedecreases, so the flow rate of the filter element will exceed the initialvalue. After each cleaning and polishing, the initial flow rate, flow decayrate and total amount of purified water will not gradually decrease like diatommud filter element. A filter element can withstand hundreds of timesof grinding and regeneration, and the performance of the filter element willnever decline before it is damaged.The total amount of purified water can reach more than 100 tons.It can be used for more than 10 years according to the daily water consumption of 20 liters for ordinary families.（It depends on the water quality）
[attach]5174[/attach]
超滤陶瓷滤芯实际应用的部分实例：
Some examples ofpractical application of ultrafiltration ceramic filter element:
1、直出水：超滤陶瓷滤芯的适用水源为市政自来水时，以直径5cm×高25cm规格的滤芯为例，过滤精度为0.01μm水压0.2~0.3MPa，初始流量2.5~4.0L/min。
1. Filtered water directly from the tap:When the applicable water source of ultrafiltration ceramic filter element ismunicipal water, taking the filter element with diameter 5cm× height 25cm as anexample, the filter fineness is 0.01μm, the water pressure is 0.2~0.3MPa, andthe initial flow rate is 2.5~4.0L/min.

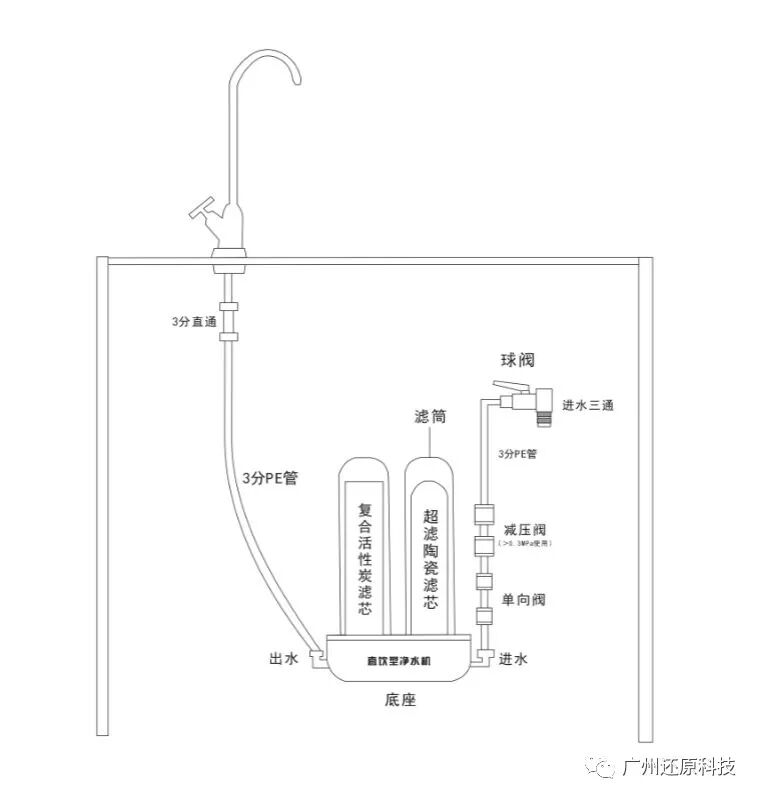

2、配合压力桶储水使用：因为水中颗粒性杂质均无法进入超滤滤芯内部，所以流量虽然会衰减，但不易堵死，配合压力桶储水使用的话，衰减过程使用者基本难以察觉，家庭使用每天饮用水以20L计算，清洗周期一般可长达三年以上，而且清洗时无需借助砂纸等工具，直接用水冲洗即可去除滤芯表面杂质，滤芯可长期使用、无需更换。
2.Used in combination with pressure barrel for water storage: Because allparticulate impurities in water cannot enter the ultrafiltration filterelement, the flow rate will be attenuated, but it is not easy to be blocked. Ifused in combination with pressure barrel for water storage, the attenuationprocess is basically difficult to be detected by users. The daily drinkingwater for household use is calculated as 20L, and the cleaning cycle cangenerally be up to more than three years. In addition, tools such as sandpaperare not needed during cleaning, and impurities on the surface of the filterelement can be removed directly by washing with water. The filter element canbe used for a long time without replacement.
关于净水技术
About waterpurification technology
目前市面上净水领域的主流技术有：
At present, themainstream technologies in the field of water purification on the market include:
1.普通粗滤：以普通硅藻泥陶瓷滤芯，PP棉滤芯为主，这些滤芯材质虽然比较环保，但只能去除大颗粒的杂质，水质虽然有所改善，但净化后的水达不到直饮水的标准，而且易堵塞、流量衰减速度快、清洗麻烦、使用寿命短。
1.Ordinary coarse filtration: dominant by ordinary diatom mud ceramic filterelements and PP cotton filter elements. Although materials of these filterelements are relatively environmentally friendly, they can only removelarge-particle impurities. Although the water quality has been improved, thepurified water can not meet the standard of direct drinking water, and it iseasy to be blocked, fast in flow attenuation, inconvenient for cleaning andshort in service life.
2.中空纤维超滤膜：超滤膜的过滤精度相对较高，可去除水中包括细菌在内等有害物质的同时保留人体所需的矿物质，但超滤膜的材质是化学合成的，有使用风险，有异味、口感不佳、易老化。
2.Hollow fiber ultrafiltration membrane: The filter fineness of ultrafiltrationmembrane is relatively high, which can remove harmful substances such asbacteria from water while retaining minerals necessary for human body. However,the material of ultrafiltration membrane is chemically synthesized, which hasrisks in use, with unpleasant odor, poor taste, easy aging and short servicelife.
3、RO反渗透膜：材质相对环保，但净水原理属于物理化学法，只能制造纯水。净化后的水质不含任何对人体有益的矿物质和微量元素，违背自然规律，改变了饮用水的天然属性，在健康饮水问题上存在争议，而且耗电、费水。
3.RO reverse osmosis membrane: The material is relatively environmentallyfriendly, but the principle of water purification belongs to physical-chemicalprocess, and only pure water can be produced. The purified water does notcontain any minerals and trace elements that are beneficial to human body,which violates the natural laws and changes the natural properties of drinkingwater, causing ontroversies on the issue of healthy drinking water. Besides,theprocess of water purification consumes electricity and water, The service lifeis short while the use cost is high.
[attach]5173[/attach]
超滤陶瓷滤芯：
Ultrafiltrationceramic filter element:
1、滤芯材质：以天然优质矿物为原材料，材质环保、无使用风险。
1. Material of filter element: natural high-quality minerals are used as rawmaterials, which is environment-friendly and risk-free in use.
2、过滤精度：平均孔径达0.01μm（ 1mm壁厚相当于几万层过滤层）。
2. Filter fineness: the average pore diameter is 0.01 μ m (1 mm wall thickness isequivalent to tens of thousands of filter layers).
3、净化后的水质：在去除水中包括细菌病毒在内等有害物质的同时保留了水中原有的矿物质，不改变水的天然属性，可直饮，长期饮用有利于身体健康。
3. Water quality after purification: while removing harmful substances includingbacteria and viruses, the original minerals in the water are retained, and thenatural properties of the water are not changed. It can be drunk directly, andlong-term drinking is beneficial to health.
4、体验感：大流量、使用寿命长、维护周期长、清洗简单、滤芯循环再生性能不衰退。
4. Using experience: large flow rate, long service life, long maintenance period,simple cleaning, no degradation of filter element recycling performance.
5、使用成本：滤芯无老化、开裂、危害健康等使用风险，无需频繁更换，使用成本低，不用电、无废水。
5. Use cost: the filter element has no aging, cracking, health hazards and otherrisks, and does not need to be replaced frequently, with low use cost, no powerconsumption and producing no waste water.
6、应用广泛：滤芯规格尺寸可根据机型定制，可用于台上式也可用于台下式等不同机型。净水流量和表面积相对应，滤芯表面积增大流量会随之增加。
6. Wide application: The specification and size of filter element can becustomized according to models, which can be used for above-counter or under-countermodels. The flow rate of purified water corresponds to the surface area, which willincrease as the surface area of filter element increases.
[attach]5175[/attach]
超滤陶瓷滤芯是一项全球领先的新型净水技术。近几年，国内外在净水技术方面没有新的实质性突破，传统净水技术在各方面都各有缺陷，一个好的净水技术必须在1.过滤精度高、可直饮；2.材料天然环保无使用风险；3.不改变水的天然属性；4.滤芯无需频繁维护更换、使用成本低；5.流量大，体验感好；6.节能不用电、无废水；这六个方面达到全优。而超滤陶瓷滤芯正是最接近六项全优的净水新材料，它必将引领净水技术领域走出一个新的方向。
Ultrafiltrationceramic filter element is a global leading new water purification technology.In recent years, there has been no new substantive breakthrough in waterpurification technologies at home and abroad, and traditional water purificationtechnologies have their own defects in all aspects. A good water purificationtechnology must be excellent in six aspects: 1. High filter fineness andproviding direct drinking; 2. Natural and environmentally friendly materials withoutusing risks; 3. No change in the natural properties of water; 4. No necessityof frequent maintenance and replacement of filter element, low cost; 5. Largeflow rate and good using experience; 6. Energy saving without powerconsumption, producing no waste water. Ultrafiltration ceramic filter elementis the new water purification material which is close to being perfect in thesix aspects, and it will lead the water purification technology field to a newdirection.
产品规格Productspecification
（产品规格可按客户需求定制，初始流量和滤芯表面积大小成正比）
（Product specifications can be customized according to customer needs, the initial flow is proportional to the size of the filter surface）
HYCL-525
规格：直径：5㎝；高：25㎝
适用水源：市政自来水
适用水压：0.1~0.6 MPa
平均孔径：0.01μm
初始流量：2.5—4.0L/min（0.2~0.3 MPa）
HYCL-525
Specification:diameter: 5cm; height: 25cm
Applicablewater source: municipal water
Applicablewater pressure: 0.1~0.6 MPa
Averagepore diameter: 0.01μm
Initialflow rate: 2.5-4.0L/min (0.2-0.3mpa)
